Solar Design Feature

Single Line Diagrams
for Solar PV + Battery Systems

Simplify your application process with Design-Driven Single Line Diagrams

Start free trial Book a demo

No contract + no credit card required

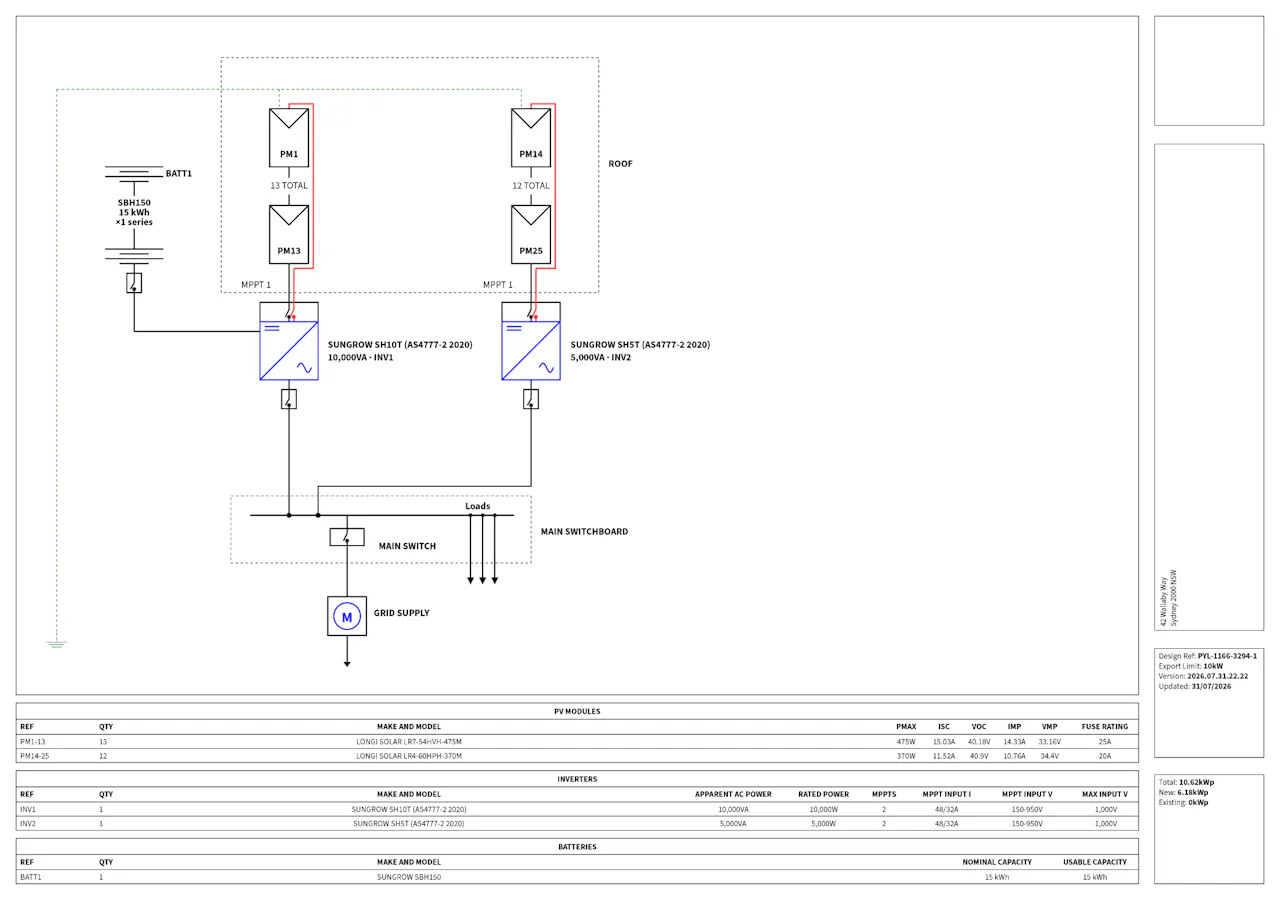

Single Line Diagram of a 10.62 kWp solar PV system with a 15 kWh Sungrow battery, hybrid inverter, isolators, main switchboard and grid connection

Trusted by solar industry leaders

Design-driven Single Line Diagrams

Generate detailed, compliant single line diagrams directly from your solar design.

Accurate and Compliant

Ensure that every SLD is perfectly aligned with your application requirements.

Smoother Installations

Reduce on-site complications with clear single line diagrams and installer job sheets.

Single Line Diagram FAQ

What is a Single Line Diagram (SLD)?

An SLD is a simplified schematic that represents a solar and battery system's electrical layout. It is often required for grid connection applications and as a guide for installers on site.

Are the SLDs generated by Pylon compliant?

Yes. Pylon generates detailed, compliant SLDs that meet the requirements of major Distributed Network Service Providers (DNSPs).

Do you support battery systems in SLDs?

Yes. Pylon's SLD generator fully supports Solar PV + Battery storage systems, ensuring all components are correctly represented.

Do you support off-grid systems in SLDs?

Yes. Off-grid and hybrid systems are supported, with the diagram reflecting the system's own AC and DC coupling rather than a grid connection point.

Can I customise the SLD?

Yes, it is fully customisable. Pylon generates the diagram automatically from your design components (panels, inverters, batteries), and you can then edit every part of it before you export: labels, cable and protection details, and the layout itself.

How much does it cost to generate an SLD?

SLDs are included as part of your project in Pylon. There are no additional fees per diagram generated.

How do I download the SLD?

Once your design is complete, you can export the SLD as a high-quality PDF directly from the project dashboard.

Explore more features

3D Shading Simulations

Understand and eliminate potential shading losses from nearby obstructions.

Explore 3D Shading Simulations

Thu 14:00 Solar 5.67 kW Battery 0.00 kW Export 4.20 kW Charge 100%

Interval Data Analysis

Analyse your customers' historical energy usage to calculate accurate system requirements and savings.

Explore Interval Data Analysis

PV System User Manuals

Equip your customers with PV System User Manuals, providing all everything need to understand their solar system.

Explore PV System User Manuals
